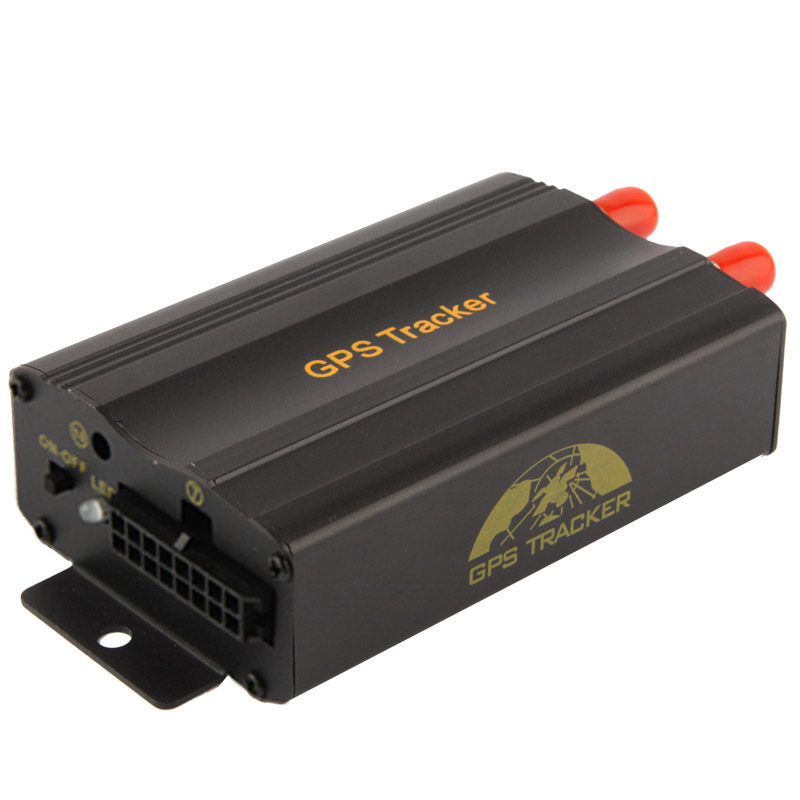

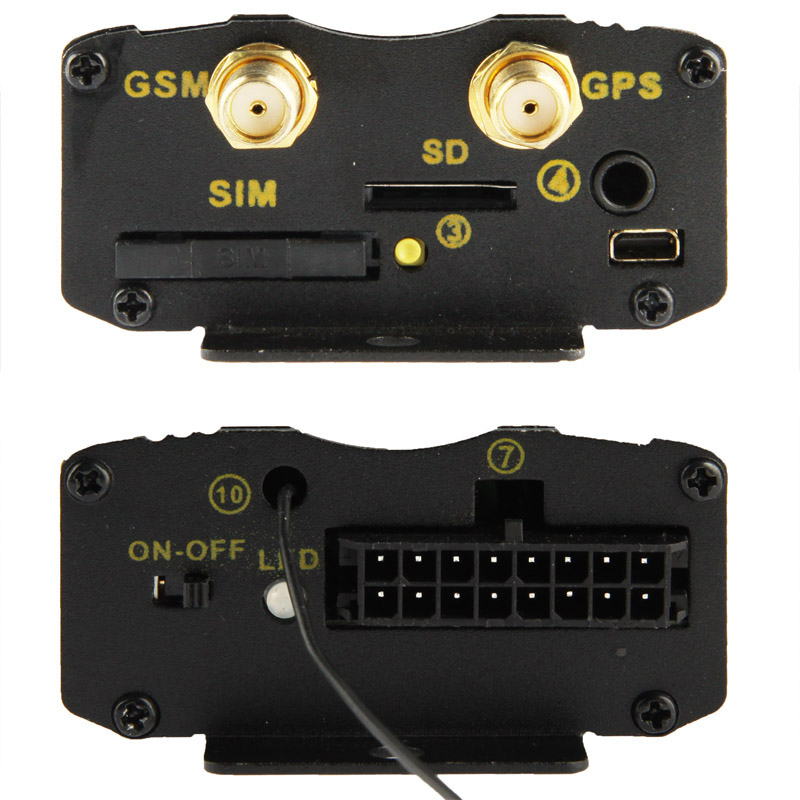

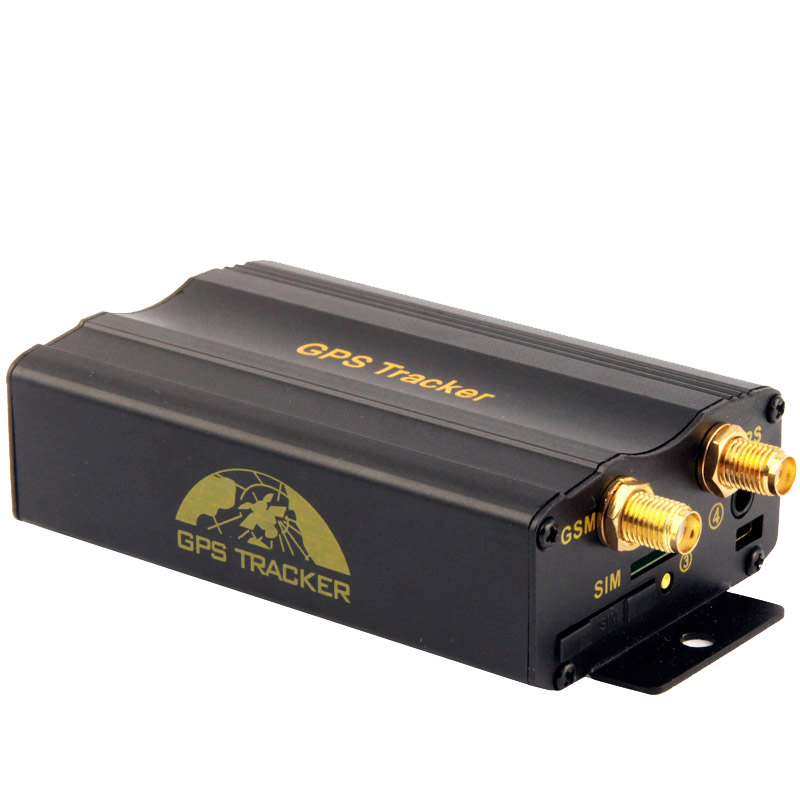

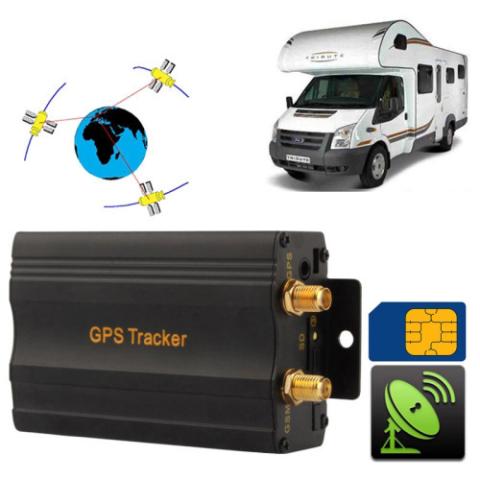

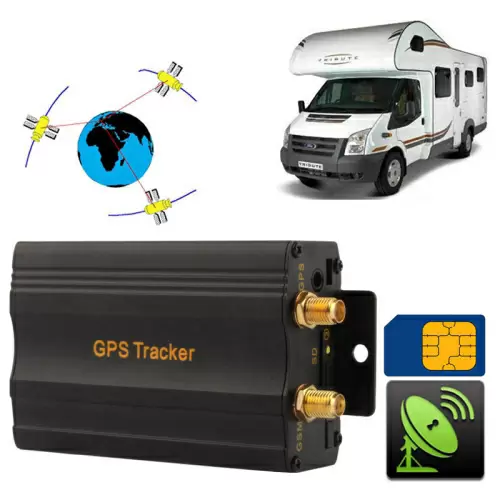

TK103A+ GPS / SMS / GPRS Tracker

1) Support non-server based location

2) Location memorization

3) Auto location report

4) Authorize / delete the tracking phone number

5) Geo-Fence: alert in case of breaching the predefined district

6) Movement alert: alert in case of movement

7) Speed alert: alert in case of excess of the pre-defined speed

8) Power alert: alert when device is being switched off

9) Remote engine-stop and Resume

10) Fuel alarm: Support dual fuel sensor

11) Support：Two SIM Card, support dual SIM card, but only one of them work with tracker, and switch to the other one automatically when it is broken, no GSM reception or no GPRS

12) Configure parameter by PC

13) Support TCP and UDP protocol

14) Less GPRS traffic

15) Four types Tracking ways: SMS + Map software, PDA cell phone, Real time tracking via your computer, Simple & useful real time tracking via our website

16) Specifications

1. Dimension: 87mm x 54mm x 26mm

2. Weight: 130g

3. Network: GSM/GPRS

4. Band: 850/900/1800/1900Mhz

5. GPS Module: SIRF3 chip

6. GPS Sensitivity: -159dBm

7. GPS Accuracy: 5m

8. GPS Start time: Cold status 45s, Warm status 35s, Hot status 1s

9. Voltage of car power system: 12 V -24V

10. Backup battery: Chargeable 3.7V 800mAh Li-ion battery

11. Storage Temp: -40°C to +85°C

12. Operation Temp: -20°C to +65°C

13. Humidity: 5%--95% non-condensing

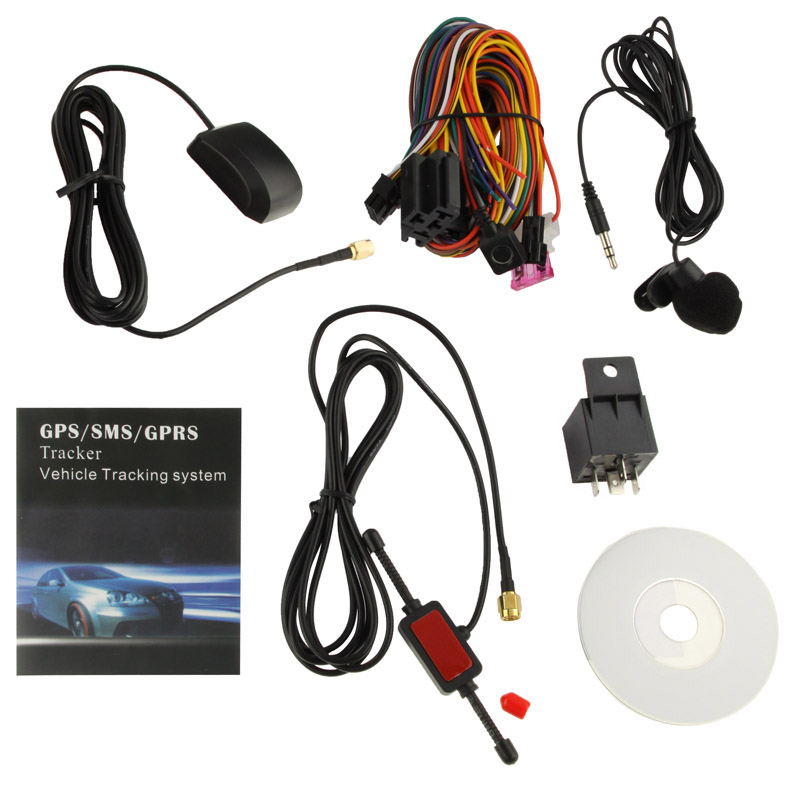

17) Including:

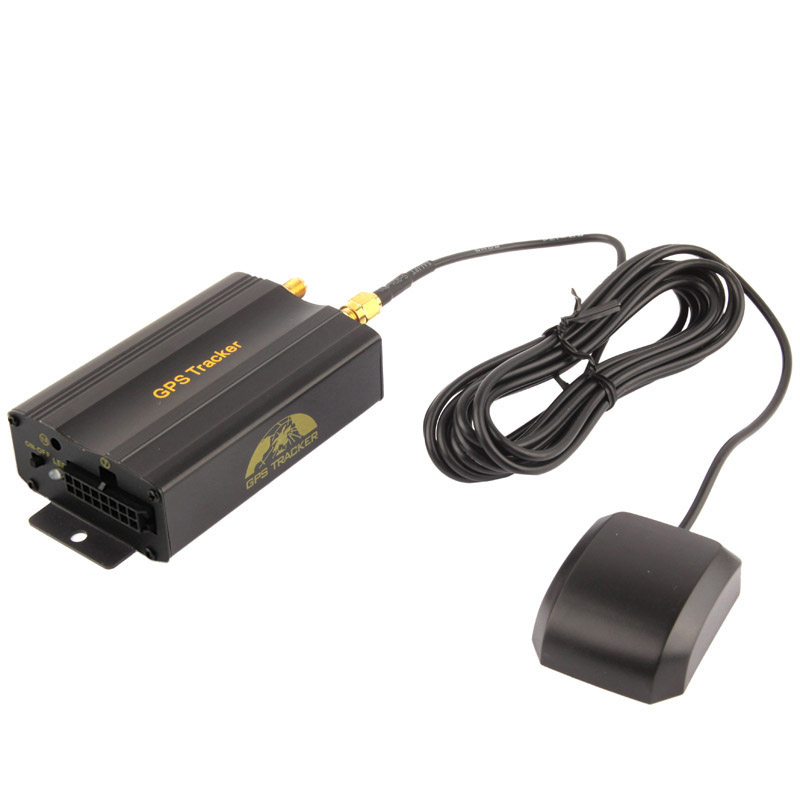

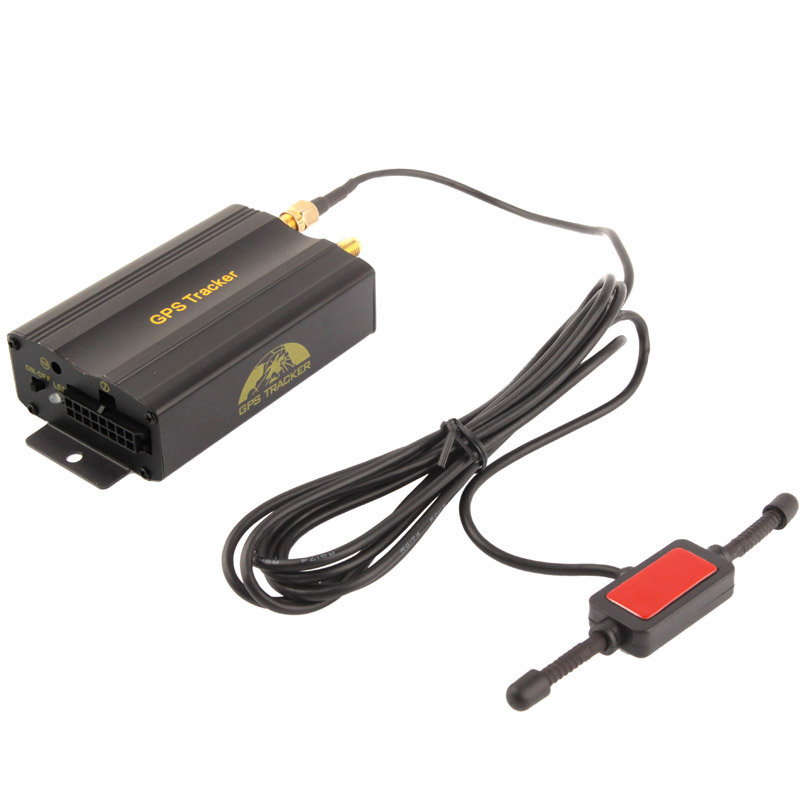

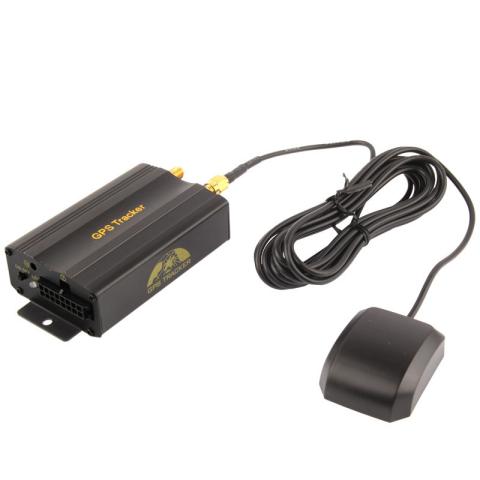

1. GPS antenna x 1 (3 meters), GSM Antenna x 1 (3 meters)

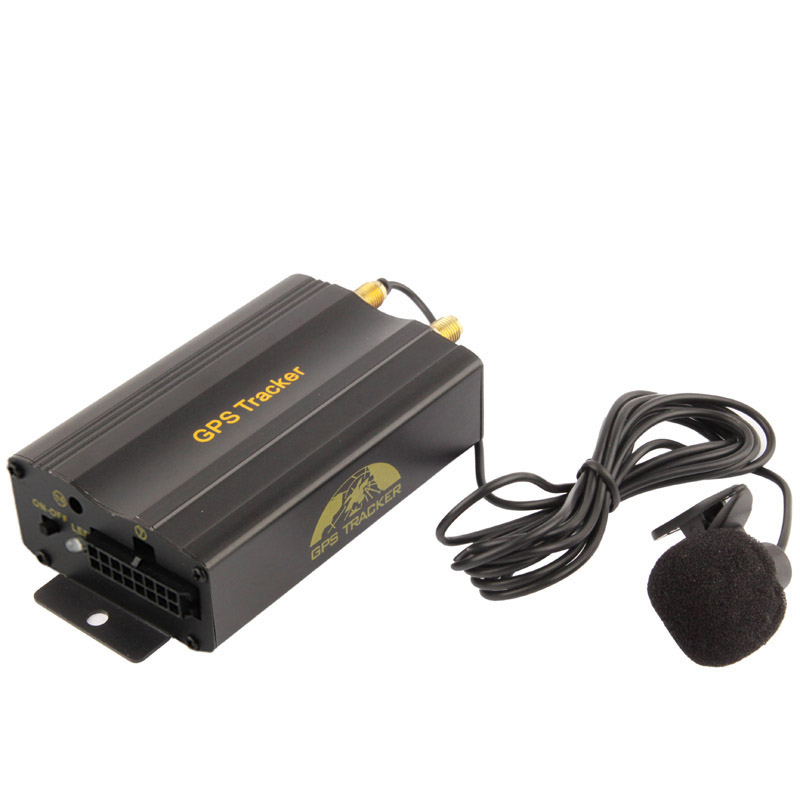

2. Microphone x 1 (1.5 meters), Harness x1 (16Pin)

3. CD disk x 1, Relay: DC 14V 30A / DC 14V 40A

4. User Manual x 1
